Welcome to Mundo Novo

Let’s make the installation and machine usage as smooth as possible from the get go.

Installation

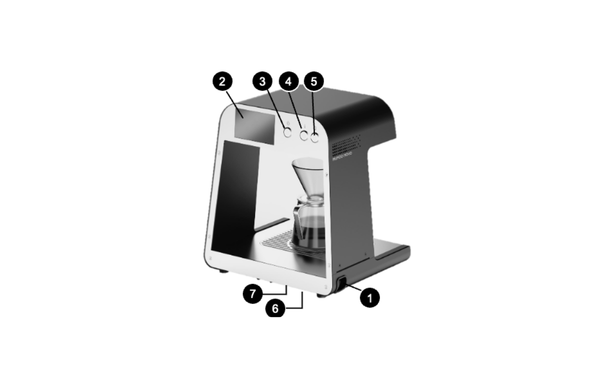

Coffee machine with a glass carafe, buttons, and display, labeled with numbered parts.

Machine Components

1) On / Off Switch

2) Touch Screen Display

3) Rinse Button

4) Brew Button 1

5) Brew Button 2

6) Water Line & Drain Tubes Entry

7) Power Connection

Direct Water Line Connection

The machine can be connected directly to a water line using 1/4" push-to-connect tubing.

Connect the machine to the water supply using the provided Pressure Regulator, Shut-Off Valve, and Flow-Reducing Orifice. These components are required for proper operation.

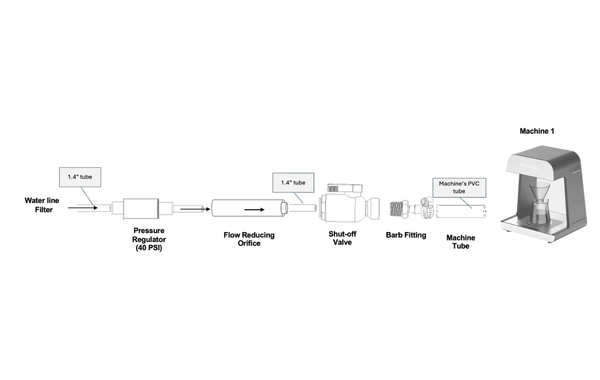

Diagram of a water filtration system showing components including water line filter, pressure regulator, flow reducing orifice, shut-off valve, barb fitting, machine tube, and a machine labeled 'Machine 1'.

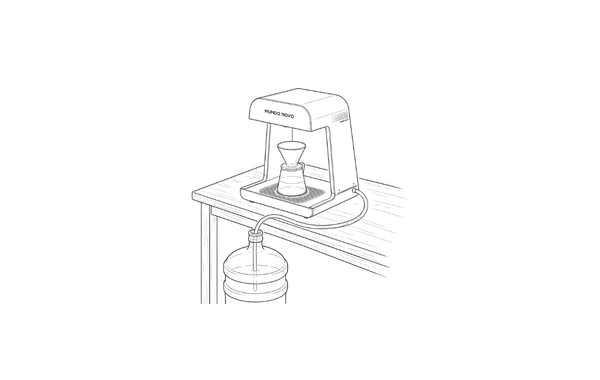

Usage With a Water Jug

The machine has an integrated pump, allowing it to draw water directly from a water jug. No flow-reducing fitting is required.

  • Remove the Water-Reducing Fitting

  • Place the Water Input Tube into the water jug, ensuring that the tube is fully submerged

A coffee brewing machine pouring coffee into a cup placed on a wooden table.

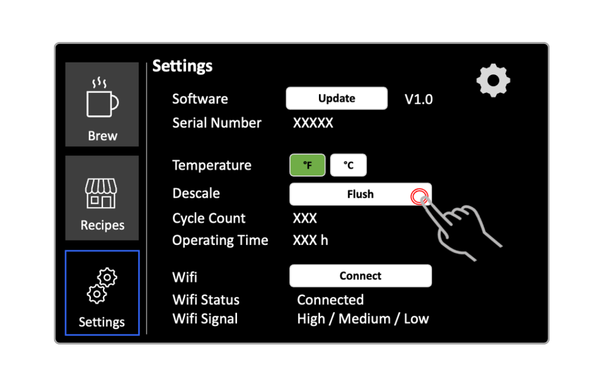

Coffee machine settings display screen showing options for brew, recipes, and settings, with temperature, descaling, cycle count, operating time, and Wi-Fi connection status.

Flushing

Flush the machine until all air has been removed from the tubing and water flows continuously.

To flush, go to ‘Settings’ → Click and hold ‘Flush System’

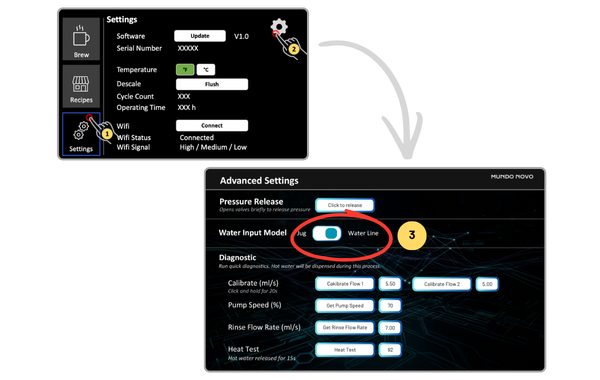

Select Water Input & Calibrate

  1. From the Settings page, go to ‘Advanced Settings’, then select your water input mode: Water Line vs. Water Jug

    ATTENTION: this is an important step and can impact machine’s performance

  2. Calibration: Press and hold Calibrate Flow 1 and, on Pro models, Calibrate Flow 2 for 20 seconds each

    CAUTION: This process dispenses water. Place a suitable container under the nozzle before starting

Screenshots of a coffee machine's digital interface showing settings, advanced settings, water input model, pressure release, calibration, pump speed, and other controls.

Recipe Customization

Recipe Lists

To create your first recipe, go to the Recipes page, select an empty recipe slot (…), and choose View and Edit Recipe.

You can create up to 14 recipes on the system, in addition to the two built in recipes.

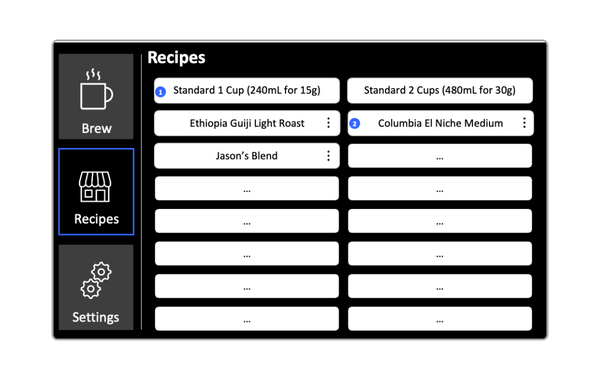

Coffee machine interface screen displaying recipe options for brewing, with a 'Brew' section, a 'Recipes' section, and a 'Settings' section on the left. The recipes include standard coffee measurements and specific coffee types like Ethiopia Guiji Light Roast and Columbia El Niche Medium.

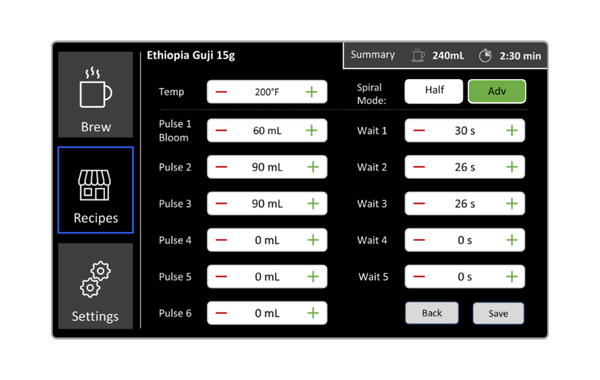

Recipe Parameters (Regular)

User sets target temperature, volume for each pulse, and the wait time between each pulse.

Select Half Spiral for narrow or conical drippers, and Full Spiral for larger or flat-bottom drippers, or when brewing larger doses of coffee.

Advanced Recipe Mode is available on Pro models only.

Coffee brewing app interface with settings for brew temperature, pulse, and wait times for Ethiopia Guji 15g.

Advanced Recipe (Pro Model)

Control the temperature, spiral direction, spiral size, and flow rate for each pulse.

Agitation Mode releases 10 mL of water rapidly while moving the nozzle quickly at the end of the recipe.

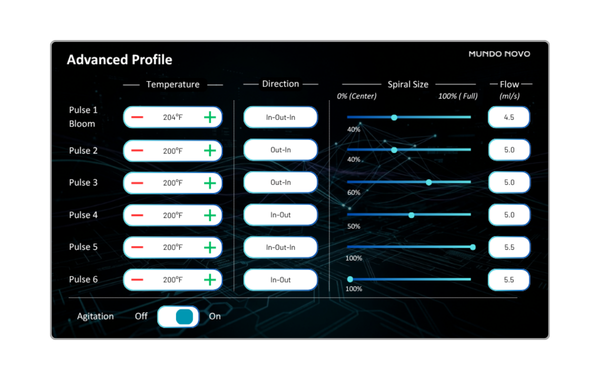

Screen displaying advanced profile settings for a system, including temperature, direction, spiral size, flow, and pulse controls, with an agitation switch at the bottom.

Activating Recipes to Physical Buttons

To brew a recipe using the physical buttons, assign it to Brew Button 1 or Brew Button 2.

On Pro models, press and hold any recipe in the recipe list to start brewing immediately without assigning it to a physical button.

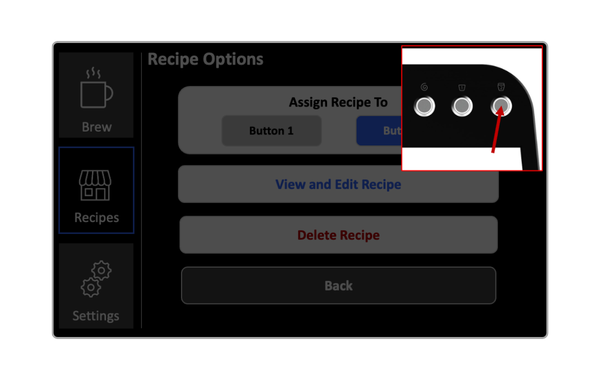

Digital screen showing recipe options with icons for brew, recipes, and settings, and buttons for assigning a recipe, viewing/editing, deleting, and going back. An inset shows part of a device with buttons and a dial.
